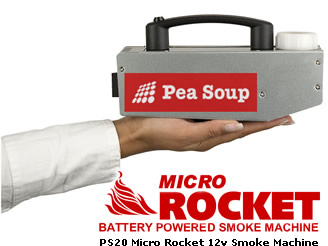

Rocket Smoke Machine was designed by Pea Soup for
work in theatrical and cinematic special effect applications. It is also
perfect for air flow tracing, LEV (local exhaust ventilation) tests, small scale leak detection
work and also to simulate smouldering fires for training.
The battery will last for approx. 10 - 12 minutes of continuous
use at high output, 15 - 20 minutes of continuous use at low output, or unlimited when connected to the optional mains adaptor
dummy battery (a full internal tank of fluid will last approx.
55 minutes at high, 1 hour 50 mins at low output). The unit has a switch for selecting high or low output, and a switch for momentary
or latching (continuous) fog production until the button is pressed
again. It can be operated from the button on the handle, or
via the optional wireless remote control.
This fog machine is perfect for situations where a touch
of fog is required in remote or unusual places. The Micro
Rocket Smoke Machine is equally capable when a steady stream
of fog is needed. The Micro Rocket is the size of a small
water bottle and can be discreetly placed on props, inside
sets or held in the hand. The unit operates on a 12V DC battery
(supplied) and is a very easy to carry and operate. It can
be used at a wide range of angles.
High output - 2.8m3/min.
Low output - 1.4m3/min.
65 - 75 watts
Fluid Tank Capacity
(55 mins at high output or 1 hour 50 mins at low output)
12V DC, 2.3Ah
Battery life (fully charged)
10 - 12 minutes at high output
15 - 20 minutes at low output
55 minutes high / 1 hr 50 mins low (with optional mains power adaptor)
Fluid Consumption Rate
2 ml per minute at high output
1ml per minute at low output
L 23 x W 6.7 x H 11.5 cm

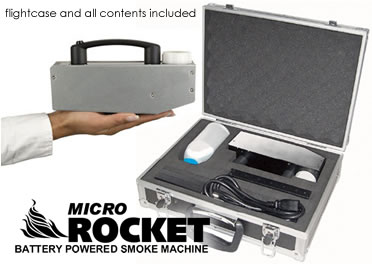

The Micro Rocket
System supplied to you comprises: 1 x Micro Rocket smoke
1 x removable spout extension
1 x rechargeable 12v DC battery
1 x battery charger w/indicator lights and
UK, EU or US plugs
1 x 500ml bottle of smoke fluid (gives up to 8 hours of smoke)
1 x transit case with locks & keys
The Micro Rocket is now also available
with a stainless steel cover for clean room applications:

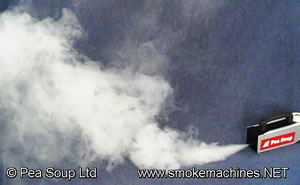

With a little practice, wisps of smoke can be achieved (above) for small scale air flow visualisation
Rocket Smoke System
PS20: 12v DC Micro Rocket
Smoke Machine System (orange)
Comprising smoke machine, battery, battery charger for
100 - 240v with indicator lights and UK, EU or US
plugs (please specify), spout extension, 500ml Micro Rocket
smoke fluid and storage / carry case with keys.
PS207: Wireless remote control
for Micro Rocket Up to 50 metre range. Receiver attaches
to main smoke machine unit using a magnetic backing.
Keyfob transmitter has on/off button.
PS208: Wired Timer remote control
for Micro Rocket On a 2 metre cable. Allows for momentary remote activation, or timed output - 10 seconds of smoke and between 3 seconds to 3 mins 40 sec interval. Also has analogue
timed output control function.
PS209: Dummy battery and mains power supply
for Micro Rocket
The 'dummy' battery slides into the unit as would a normal
battery, and a cable connects it to a mains power transformer.
A cable from the transformer plugs into your mains socket
(100 - 240v).
PS205: Additional 500ml smoke fluid for
Micro Rocket Will give over 4 hours
of total smoke production.
PS206: Spare 12V battery for
Provides a total of 10 - 12 minutes smoke production when
PS212: Rake attachment Ideal for multiple point smoke production for air flow visualisation. 15 exit points, fitted in place of spout extension.
12v DC Micro Rocket Smoke Machine
System (in stainless steel cover)
As above, but in stainless steel cover. (not available for US)

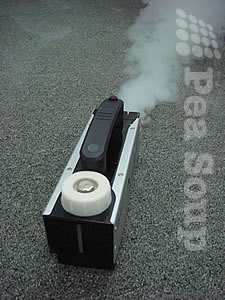

Mini Rocket: 400W 12v DC Battery Powered Smoke Machine
Don't forget, if you need to produce LOTS of persistent smoke,
system can be used off-power for up to 2 minutes
A higher output battery powered
Ideal for theatre, film, TV and
photographers, musicals and special effects, smaller scale
air flow and air tightness testing - everywhere where fog
is needed quickly and efficiently, this unit is the perfect
alternative to normal mains powered fog generators.
• Very short 1 second heat-up time
• Light weight (5.6 kg) and
small dimensions (L 22.3; W 10; H 21cm)
• Adjustable smoke output
• Microprocessor controlled - guarantees
continuous and safe running of the generator.
• 10 minutes smoke production
With the supplied battery, 10 minutes of continuous output
or up to 150 x 5 second bursts can be produced. When the battery
is flat it needs to be recharged with the supplied charger.
Additional battery packs are available (battery complete with
housing, PCB, fuses and plug) for quick swapping and continued
fog production. Alternatively, an external battery connector
cable is available allowing you to connect a 12v car battery,
giving up to 2 hours of smoke production
The battery supplies energy only when needed, so operation
time is considerably increased - the stand-by time is 250
• Minimal fluid consumption - just 10ml per
The unit is equipped with a 3 pin-XLR-socket for analog (0
- 10V) control. An XLR-remote as well as a wireless radio
remote can be connected (both optional extras).
With the optional DMX-converter (DMXit) the machine can be
controlled via DMX 512.
With the optional Timer module a 'fog' and 'wait' time can
be programmed in.
• Portable use
• Heat-up time only 1 second
• Light weight, small dimensions
• Adjustable output
• 250 hours stand-by time
• Continuous output
• Easy handling
• Control via start button or analog (0 - 12V) and with
optional controllers: XLR-remote, radio remote, DMX-converter,
• Minimal fluid consumption
• Easy change of the battery pack
Supplied system comprises:
Battery charger (100v - 240v AC,
with UK, EU or US plug)
Fluid tank 250 ml
500ml container of Mini Rocket Smoke Fluid
We ship worldwide
(approx. US $765.00 , EU €655.00)
Power: 400 Watt
Voltage: 12 V with battery
Warm up time: 1 second
Fluid consumption at continuous output: 10 ml/min.
Fluid tank capacity: 250 ml
Fog output: adjustable
Fog time: with battery
10 min. continuous output or 150 x 5 sec. bursts
Control: Start button on handle / 0 – 10 V analogue
/ OPTIONAL: Radio remote / DMX 512 / Timer
Temperature control: Microprocessor controlled
Dimensions (L x W x H): 22.3 x 10 x 21 cm
Weight incl. battery: 5.6 kg
Rocket without battery
Just the top 'smoke producing' part of the unit (no
battery or charger). You will need your own battery
to make this unit work (see our cable connector below
for connecting to a 12V car battery). It comes with
a length of silicon fluid pipe, and 250ml fluid reservoir.
$565.00, EU €525.00)
PS19SS: Stainless Steel Mini Rocket
As per the standard system with battery and charger, but in a stainless steel chassis.
PS311: Timer controller
Allows precise automated timed smoke output from the unit,
digitally controlling the fog run time and delay interval
with accuracy to the second.
PS310: DMX Interface
Allows you to connect the unit to a DMX control source.
PS412: Wireless remote control and receiver
100 metre range in ideal conditions. Latching/momentary function.
US customers: this is FCC approved.
PS410: Wired remote control
Volume control and latching on/off switch. With extendable
3 metre cable.
PS405: 500ml Container Mini Rocket Smoke
For the Mini Rocket.
PS425: 2.5 Litre Container Mini Rocket
For the Mini Rocket.
PS450: 5 Litre Container Mini Rocket Smoke
For the Mini Rocket.
PS414: Spare battery base assembly including
battery (no charger)
Gives you a back-up battery to use. 10 minutes continuous
output from a full charge. Includes connector plug, built-in
charging PCB and fuses.
PS416: Cable connector for connection
to a 12V car battery (complete)
Allows longer run-times from larger capacity batteries.
A 70Ah 12v car battery should give up to 2 hours total fog production. This is the ready to use complete kit - all you will need is the battery.
Cable connector for connection
to a 12V car battery (simplified)
As above, but this lead comes as a simplified version (we recommend fusing appropriately).
PS421: Mains Power Adaptor
To allow the operation of the unit direct from mains power,
increasing the run-time as there is no battery involved. Stainless
steel enclosure, fan cooled.
PS413: Replacement battery charger
The charger required to charge-up the standard supplied
battery for this unit.
PS419: 32mm diameter flexible ducting
hose, 2 metre length
For use in conjunction with the ducting adaptor above.
PS420: 32mm diameter flexible ducting
hose, 4 metre length
As above, but 4 metre length.
PS415: Spare vaporiser assembly including
Simple replacement using existing connectors inside the
PS423: Thermal fuse for vaporiser PCB
Please note: Requires soldering. Replace the thermal fuse in the heater coil if it has tripped.
PS417: Transport / Storage
With custom foam cut-out. Space for the Mini Rocket
unit, charger/remote and 500ml fluid container. Colour:
IP67 certified for military, broadcast, marine, photography,
industrial use. Air tight, corrosion proof, water tight,
sand and dust proof. Built-in pressure valve. Can be
padlocked. Photo for illustration..
for this unit are available - circuit board, fluid pump, fluid pipe, thermal fuses, etc. Contact us
