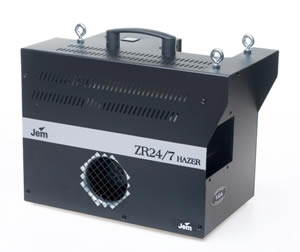

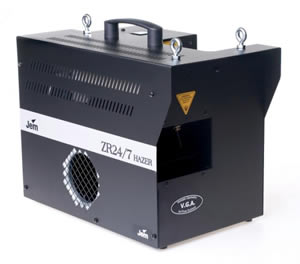

Jem ZR24/7 Hazer - DISCONTINUED

The ZR24/7 Hazer is capable of producing very small refractive airborne particles to deliver the perfect light-enhancing canvas of haze. The rugged design together with a long list of features makes this, a worthwhile offering from Jem.

The basis of this unit is a rugged design suited for any event, but targeted at professional applications from stage to touring as well as high scale discotheques.

The 3-digit LED user interface gives you access to:

  • DMX set up – DMX addressing
  • Fog output – from 1 to 20
  • Fan speed – from 1 to 20
  • Temperature control – Setting the temperature to “high”, “normal” or “low”, enables you to use different JEM fluids for different effects.
    Timer – high precision digital timer selecting timer “ON” or “OFF” for X-amount of seconds.


Have you seen ...
the British Made Le Maitre MVS Hazer

With DMX, haze output control, fan speed control, fan angle control,
variable mounting options and efficient fluid use

Features:

  • 3-digit LED user interface
  • This Hazer comes as standard with on-board 3- and 5-pin DMX – two channels (Fan speed and Fog output).
  • V.G.A system (Variable Geometry Airflow) allows you to set the angle of the output.
  • High velocity radial blower.
  • This high precision hazer uses state-of-the-art digital technology.
  • Specially designed heat exchanger has reduced heat up time to less than 2 minutes.
  • Designed for continuous operation.
  • Fluid consumption at max output: 410 ml/hour

DIRECT THERMAL PROTECTION DEVICE (DTPD)
This small yet crucial component is the last line of defence against catastrophic failure. This machine's DTPD is made from a solid ceramic composite. This guarantees extremely precise overheat monitoring and is unaffected by ambient temperature changes.

Electronic Low Fluid Cut-off System
This technology is fitted to all machines designed for continuous operation. To eliminate the risk of running dry and burning out the pump, this unique electronic sensing system will automatically shut-off the machine, protecting all major components.

Sequential Pump System
Because haze generators generally run continuously, heavy demands are placed on the pump. Jem´s Sequential Pump System increases the life of the machine through a dedicated ´haze´ pump circuit which pulses the pump at full output thus producing the ideal output and keeping the pump cool.

Soft Start Electronics
The 'crack' created during the initial burst of smoke is caused by the pump pressure overcoming the incredible back pressure of the heat exchanger. The unique Soft Start Electronics in this machine gradually powers the pump, eliminating this crack and ensuring a quieter and smoother operational level following initial start up.

On-Board LED display
This 3 digit LED user interface allows you full and user-friendly access to the different functionalities of the unit.

On-Board DMX
With onboard DMX you will have access to the machine from any DMX controller or desk.

Digital Link
Whether you´ve run out of DMX channels or simply want to link two smoke/haze machines together and operate them from a single remote, Jem’s link facility is the solution. This feature even allows multi-machine connection, making operation a simple one-finger action.

Fluid Container (2.5 litre)
All Jem smoke, haze and heavy fog machines are designed to carry removable fluid containers of varying sizes depending on the model´s application. The removable container makes for quicker refills and protects the machine from damage through spillage in transit.

Fluid Container (1 litre)
All Jem smoke, haze and heavy fog machines are designed to carry removable fluid containers of varying sizes depending on the model's application. The removable container makes for quicker refills and protects the machine from damage through spillage in transit.

Heat Exchangers (900W)
All Jem heat exchangers are designed for high efficiency performance. Only the purest grade LM24 aluminium is used in the production process which eliminates the risk of porosity (pockets of gas within the casting which can cause heater failure). All heat exchangers contain cuprous helicoils of at least 2.8 metres in length, ensuring a continuous flow of pure, dry, white smoke.

User manual

Watch a video of this hazer in action
(4.6Mb)

DISCONTINUED
