BUY SMOKE MACHINES

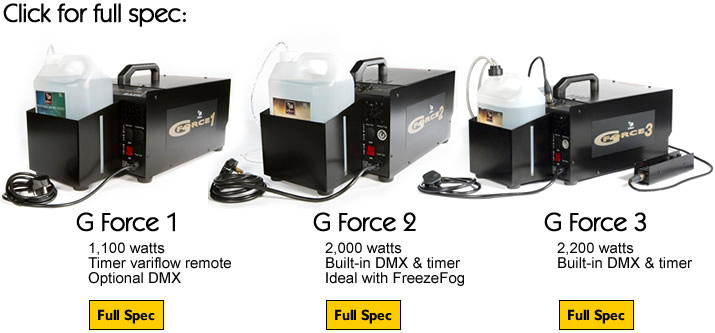

There are 3 models available in the G Force range from Le Maitre.

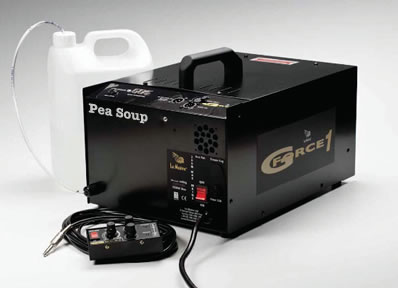

G Force 1 Smoke Machine

Unit shown above without bottle carrier fitted

The G Force 1 smoke machine features:

  • Continuous (ramped) fog output
  • Wide choice of special effect fog fluids, from long lasting to extra quick dispersing
  • Control panel on back of unit with optional timer remote control or DMX interface also available
  • Easy change block system - enables machine fluid pipe to be changed without returning the unit for service

Features:

  • CONTINUOUS OUTPUT
    Up to 425 cubic metres per minute of thick white fog!
  • SPECIAL EFFECTS FLUIDS
    From industrial persistent fluid used by fire fighters to an extra quick dispersing steam effect - we have the smoke fluid to create the effect you need
  • RAPID CHANGE TECHNOLOGY (RCT)
    The biggest issue with smoke machines is a plugged block through normal wear and tear. Rapid Change Technology uses a unique heat exchanger design allowing the fluid capilliary to be changed on site, in less than 15 minutes, with no special tools.
  • BOTTLE CARRIER INCLUDED
    Allows a 5 litre fluid container to be mounted on the unit for portability (see right)

A continuous output machine giving you the choice of the full range of the special effect fluids from Le Maitre, from long lasting to extra quick dispersing (see below).

Power Requirements:
240v, 50hz, 1100W, 5A
110v version available upon request (or in stock US base, see below)

The G Force 1 can generate virtual continuous fog output, ramping fog output to 25% to maintain a continuous flow.

Timer Variflow Remote gives smoke output duration of 0 - 30 seconds and interval times of up to 20 minutes.

Fluid consumption:
3ml/sec. Short duration burst
0.75ml/sec. continuous output (ie 25%)
1 hour 40 minutes per 5 litre container

Made in Britain

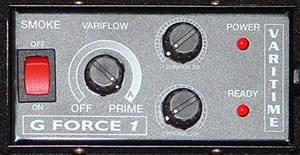

Variflow remote
- variable output control


Varitime remote
- allows easy timed control of smoke output

  ORDER ONLINE
G Force 1 Smoke Machine, variflow timer remote, 230v :
OUR PRICE £520.00

G Force 2 Smoke Machine


Shown with optional remote control

The G Force 2 smoke machine features:

  • 2kW heat exchanger
  • Powerful continuous fog output
  • Digital fog output control (timer / DMX)
  • Easy-change heater block

It has integrated DMX and an on-board digital control panel, utilising dual microprocessors.

Perfect for use with FreezeFog Pro.

Features:

  • 2kW heater power.
  • Lower noise, smoother output, and more efficient continuous running.
  • Dual processor circuitry with a digital control panel.
  • Timed smoke output
  • Includes a connection for use with the Freezefog Pro.
  • Optional connection for controlling fans up to 200W.
  • Built in DMX. (5-pin connectors)
  • External fluid bottle, with 5 litre bottle carrier (included), reducing space requirements.
  • Controls – Smoke Output, Pre-Delay (Freezefog use), Fan Speed (Optional output), Time on, Pause time, DMX address, Options to bypass DMX address 2 & 3.
  • Separate Smoke On/Off.
  • Easy change block system - enables machine fluid pipe to be changed without returning the unit for service

Settings can be stored for instant recall on power up. DMX can be locked for powering up in DMX mode. Available for 230v or 110v power supplies at no extra cost.

Editor's note:
The G Force 2 can be used with the Freezefog Pro to create a massive heavy fog effect.

Mechanical Specifications:

Power Requirements:
220/240, 50Hz, 2000w. 110v opt.
Length: Width:
41cm 29cm
Height: Weight:
20cm 12kg

Fluid consumption:
4ml/sec. Short duration burst
1.5ml/sec. continuous output (ie 38%)
55 minutes per 5 litre container

PDF User manual


G Force 3 Smoke Machine


Shown without bottle carrier, which is supplied.

The G Force 3 is the latest smoke machine from Le Maitre. Simply put, it is the world renowned G300 in a more compact chassis with improved controller, saving a substantial amount on the purchase price of a G300.

  • 2.2kW heat exchanger
  • Very high fog output with continuous flow option
  • Large heater block with twin output pipes
  • Twin fluid pumps for maximum flow
  • Digital fog output control (timer / DMX)
  • Easy-change heater block

It has integrated DMX and an on-board digital control panel, utilising dual microprocessors.

Features:

  • 2.2kW heater power.
  • Lower noise, smoother output, and more efficient continuous running.
  • Dual processor circuitry with a digital control panel.
  • Timed smoke output control
  • Includes a connection for use with the Freezefog Pro.
  • Optional connection for controlling fans up to 200W.
  • Built in DMX. (5-pin connectors)
  • External fluid bottle, with 5 litre bottle carrier (included), reducing space requirements.
  • On-board control panel. Optional timer remote control.
  • Controls – Smoke Output, Pre-Delay (Freezefog use), Fan Speed (Optional output), Time on, Pause time, DMX address, Options to bypass DMX address 2 & 3.
  • Separate Smoke On/Off.
  • Easy change block system - enables machine fluid pipe to be changed without returning the unit for service

Settings can be stored for instant recall on power up. DMX can be locked for powering up in DMX mode. Analogue remote uses 5 pin XLR cable. Available for 230v or 110v power supplies at no extra cost.

Editor's note:
The G Force 3, giving the same high smoke output level as the G300, can be used with the Freezefog Pro to create a massive heavy fog effect.

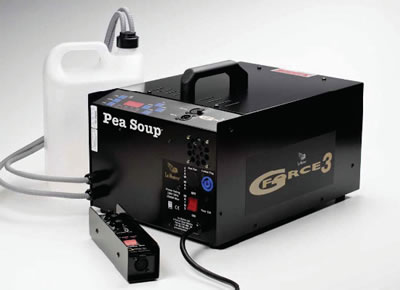

Shown with bottle carrier (supplied) and optional remote control

Power Requirements:
220/240, 50Hz, 2,200w. 110v opt.
Length: Width:
41cm 29cm
Height: Weight:
20cm 12kg

Continuous output after huge initial 'blast' of smoke. Output ramps down to maintain contunuous flow.

Fluid consumption:
8ml/sec. medium duration burst
1.5ml/sec. continuous output (ie 19%)
45 minutes per 5 litre container

G Force 3 Smoke Machine w/DMX control.
R
RP £1,395.00.

Contact us to order

OPTIONAL ACCESSORY:
G Force 3 timer remote control
£125.00

Qty:

PDF User manual





Smoke fluid for use with this machine:
Global Deluxe Smoke Fluid - an economical fluid mix with a medium / long hang time
Industrial Fluid - extra dense long lasting smoke for training, testing and industrial use
Quick Dispersing - ideal for effects, and if you don't want to set smoke alarms off!



ALTERVATIVE PRODUCT:
Reliability, efficiency, performance.
Introducing the outstanding Pea Soup Dragon PS27...
Consistent 100% full output, no ramping.


Related products:
Name Description
Le Maitre Smoke Fluid All types of fluid mix for Le Maitre machines.
Global Deluxe Smoke Fluid Economical fluid for all Le Maitre machines
Industrial Smoke Fluid Denser smoke fluid designed for use in Le Maitre machines for fire training applications.
Quick Dissipating Smoke Fluid Ideal for low smoke or steam effects
G300 Fully digital high power smoke generator with microprocessor control.
Freezefog Pro Low Smoke Converter A hugely powerful and consistent heavy fog effect.
2.2kW High Output Smoke Machine The Dragon is our highest quality water-based smoke generator offering continuous 100% high output and uncompromising component reliability.
