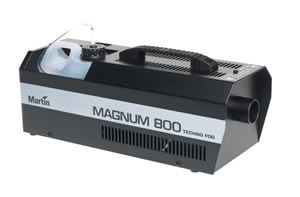

Martin Magnum 800 Smoke Machine

Compact and lightweight, the Magnum 800 effortlessly punches out a full, dense fog which is why it’s appreciated the world over as an industry workhorse. Built tough and rugged with a convenient carrying handle and portable design, the Magnum 800 uses the same high technology standards found in the larger Magnum models. These include SMD electronics and the advanced Direct Thermal Protection device to prevent overheating.

With the unique electronic pump ramping system, gasping, inconsistent fog flow is a thing of the past. The Magnum 800 delivers a continuous and even level of fog and the incorporation of soft start electronics means that the Magnum 800 operates at a very low noise level. With a convenient hand-held remote control offering an auto-timer circuit as well as a fog density level adjustment, the Magnum 800 gives you total control.

Discontinued from sale
(replaced by the Magnum 850)

  • Continuous smoke output – no ‘dead band’ for re-heat
  • Variable smoke output (0 -> maximum)
  • Approx. 200m3 smoke output (7062 cubic feet/min.) at maximum output
  • Auto timer remote control
  • Output level control
  • 750w heater
  • Direct thermal protection
  • 7 minute heat up time
  • 1 litre fluid container
  • Very smooth smoke output (no 'pulsing')

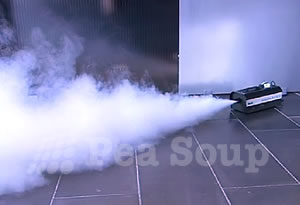

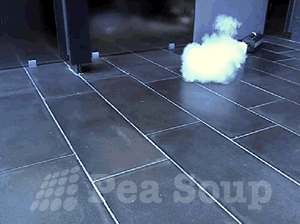

Watch a video of this smoke machine in action
(5.7Mb)

The Martin Magnum 800 is the perfect fogger for a large number of applications, including small nightclubs, mobile DJs, bands, small theatre productions. It is also a useful fogger for photo studios and at parties and celebrations.


Timer remote control (supplied)

Mechanical Specifications:

Power Requirements:
3.2A @ 220-240v
7.2A @ 110v
Dimensions:
422mm x 220mm x 160mm
  Weight:
  6.5kg

Fluid consumption (max.):
50ml/min.

Output nozzle diameter:
40mm

DIRECT THERMAL PROTECTION DEVICE (DTPD)
This small yet crucial component is the last line of defence against catastrophic failure. This machine's DTPD is made from a solid ceramic composite. This guarantees extremely precise overheat monitoring and is unaffected by ambient temperature changes.

Electronic Pump Ramping (EPR)
EPR is an intelligent means of warning of a drop in temperature which could result in 'wet smoke' (residue). The pumps respond to this signal by running slower and pumping less fluid, thus allowing the heaters to restore optimum operational temperature. This guarantees a continuous flow of smoke using highly efficient, lower wattage heaters.

Soft Start Electronics
The 'crack' created during the initial burst of smoke is caused by the pump pressure overcoming the incredible back pressure of the heat exchanger. The unique Soft Start Electronics in this machine gradually powers the pump, eliminating this crack and ensuring a quieter and smoother operational level following initial start up.

Compact Timer Remote
A hand-held remote that is safe, user friendly, low voltage remotes which offers precision auto-timer and output level controls. The auto-timer is simple to set with 'Fog On' adjustable between 0 and 15 seconds, while the delay period is pre-set at 1 minute.

Fluid Container (1 litre)
Designed to carry a 1 litre removable fluid container. The removable container makes for quicker refills and protects the machine from damage through spillage in transit.

Heat Exchangers (750W)
Designed for high efficiency performance, only the purest grade LM24 aluminium is used in the production process which eliminates the risk of porosity (pockets of gas within the casting which can cause heater failure). All heat exchangers contain cuprous helicoils of at least 2.8 metres in length, ensuring a continuous flow of pure, dry, white smoke.

Download information sheet (PDF)

Download user manual (PDF)

Martin Magnum 800 Accessories
Remote Control for Magnum 800
THIS HAS BEEN DISCONTINUED


Related products:
Name Description
800w Smoke Machine Highly compact unit with continuous output and remote control.
G Force 1 Continuous output smoke machine with remote or DMX control.
Jem Smoke Fluid All types of fluid mix for Jem and Martin machines.
Jem ZR12 Continuous output machine with timer remote.
