BUY SMOKE MACHINES

RSG - Realistic Smoke Generator

Air Flow Checker

The RSG incorporates:
• Solid state switching
• PID microprocessor control
• Sub micron particle size (just 0.2 micron mmd)
• Inert gas carrier purge
• Remote operation
• Thermal cut out
• Machined heat exchanger chamber

The ultimate smoke generator for creating the most realistic smoke for detector testing.

The Pea Soup RSG is based on our best selling Phantom high temperature smoke system.

Unlike conventional water based smokes, the thermally buoyant smoke produced by the RSG is resistant to extremely high temperatures.

It is capable of simply and repeatedly creating non-toxic artificial smoke, from small quantities (representative of a smouldering fire) to larger quantities, with thermal bouyancy, which will rise up to activate ionisation, optical, beam and aspirating smoke detectors.

The RSG incorporates a thermal chimney with 4 independently switched air heaters, into which the smoke is introduced. The air within the chimney rises, carrying with it the temperature resistant smoke, and a highly effective, repeatable and consistent thermally buoyant smoke effect results.

The Phantom type smoke is approved by the CNPP and used in bespoke systems specifically for smoke detector testing. An RSG variant can be supplied, capable of running off an aircraft's own power supply (see below).


Technical Specification (approx.)
Dimensions
23 x 62 x 46 cm
Weight
17kg

Heat Exchanger Wattage

400w
Chimney Heater Wattage
4 x 160w
Operating Voltage
110v, 50-60 hz
aviation variant 110v, 50-450 hz
optional 230v, 50-450 hz
Operating Pressure
0 - 3.5 bar


Price: POA

Contact us to order.


RSG Brochure PDF

ISO 9001


Ships worldwide

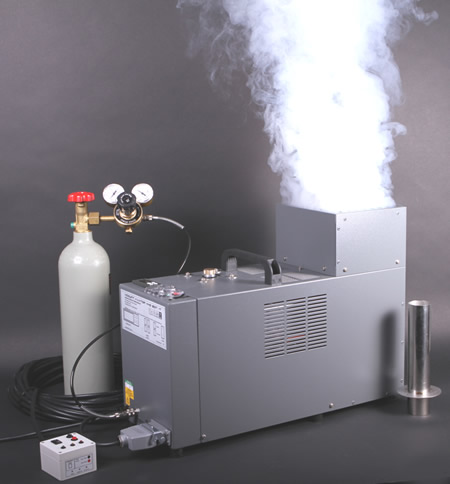

RSG - Realistic Smoke Generator- Aviator UL Variant

Designed for running from aircraft power supplies, this unit is based on the popular RSG system above.

It is optimised to produce an extremely smooth, very low
output of thermally buoyant, non toxic, non contaminating smoke to assist in the testing and installation of the latest series of “smart” smoke detectors, replicating closely the smoke type typically produced by a smouldering fire. It will operate from conventional 110v mains supply or an aircraft power supply.

Unlike conventional water based smokes, the smoke produced by this system is resistant to extremely high temperatures.
The unit incorporates a thermal chimney with 4 independently switched 160w air heaters, into which the smoke is introduced.
The air within the chimney rises, carrying with it the temperature resistant smoke and an effective, repeatable and consistent thermally buoyant smoke effect results which will activate ionisation, optical, beam and aspirating smoke detectors.

The smoke output is fully controllable, from a wisp of smoke to a large plume. The typical particle size of 0.2 micron mmd is optimal for such smoke detector work, although the UL model incorporates a precision micrometer valve with a vernier scale adjusting the amount of chemical being introduced into an inert gas stream, in effect adjusting the smoke density / particle size. The vernier scale allows for previous settings to be repeated with accuracy.

The standard RSG Aviator UL incorporates a stainless steel through tube which allows smoke generation directly through the chimney if required and the attachment of 50mm flexible ducting so that it can be used as a conventional smoke generator as well.

Other options include:
• Uprated Chimney heaters (1kw) with remote operation of power output 0-100%
• Heated Oil Tank—for optimum viscosity control of the smoke chemical
• Instant Smoke on / off option
• PLC touch screen remote with adjustable smoke on / off periods

All RSG smoke systems incorporate
• Solid State Switching of heat exchanger with TCO
• Inert gas carrier purge
• Low voltage remote operation
• Trace heating of oil reservoir
• Machined heat exchanger chamber
• PID microprocessor control


RSG Aviator UL Brochure PDF

Price: POA

Contact us to order.
