BATTERY POWERED SMOKE MACHINES

Please note on all Tiny Foggers, the vaporiser PCB is not a warrantied item. It is a wearing part and not covered by the warranty.

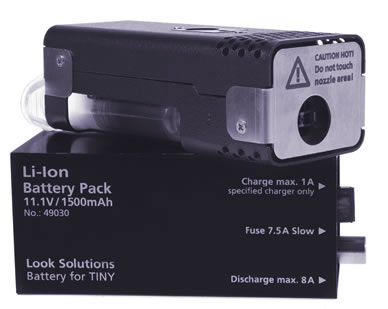

Tiny FX Compact Smoke Generator



The smallest smoke machine in the world.
9.8cm (L) x 4.4cm (W) x 3.4cm (H)

For special effects, theatre, musicals and movies, models, props, magic and more!

The tiny dimensions and weight (just 380 grams) means this smoke machine can be easily built into backdrops, props etc.

The heart of the generator is a programmable microprocessor which controls fog production. You can program in a fixed fog amount directly at the machine. This programmed fog amount can easily be reproduced and/or changed.


A compact battery (L= 10.5, W= 4.4, H= 3.0 cm) supplies the unit with the 11.1V supply. This modular design with separate rechargeable battery ensures flexibility for individual uses. The battery supplies energy only when needed, thus the fog time is greatly increased.

The Tiny FX is triggered with a small cable remote (supplied) or directly at the machine. A radio remote is available as an optional extra (as well as DMX and timer control modules).

The fluid tank contains 5ml of fluid, giving you up to 2 minutes smoke production. There are 6 x 5ml fluid tanks supplied with the system, along with a refilling set and 250ml of fluid (enough to refill 50 tanks). A special fluid ensures dense fog is produced at the low fluid consumption rate of 2.3 ml/min. at continuous output.
N.B. The video on the right shows the previous model of this machine which has a slightly different case design, but illustrates the same smoke output level which is identical to the new version.

• Very small dimensions
• Battery supplies energy only when necessary
• Warm up time less than 1 sec.
• Continuous output
• Fog time programmable
• Simple controls
• Trigger with remote and optionally with radio remote
• Carrying case
• Vaporiser can easily be changed

Technical Data

Power requirement: 70 Watt
Voltage: 11.1 V battery
Warm up time: 0.5 sec.
Fluid tank capacity: 5 ml
Fogging time: programmable
Continuous output with battery: 10 min.

Dimensions (LxWxH) L 9.8, W 4.4, H 3.4 cm
Weight 180 g
Dimensions battery (LxWxH) 10.5 x 4.4 x 4.1 cm
Weight battery approx. 200 g

Package includes Tiny FX Fogger unit, battery, charger, wired remote control, 6 x fluid tanks, refill set, 250ml fog fluid, lead and carry case.



Shown without battery cable connected


Each 5ml smoke fluid syringe (6 provided, plus refill kit) provides up to 2 minutes of smoke production

Please note on all Tiny Foggers, the vaporiser PCB is not a warrantied item. It is a wearing part and not covered by the warranty.


We ship worldwide
UK, EU or US plug supplied for charger

List price: £848.00
Our price: £735.00
(approx USD $970.00)


Tiny FX System & Accessories
Tiny FX Battery Powered Smoke Machine System
comprising Tiny FX Fogger, battery, charger, wired remote control, 6 x fluid tanks, refill set, 250ml fog fluid, lead and carry case
£735.00
Add to basket
Tiny FX Smoke Machine System
comprising Tiny FX Fogger, mains power supply unit, wired remote control, 250ml fluid tank and adaptor, 1 metre fluid pipe, 250ml fog fluid, lead, power lead.
**Note: NO battery, charger or carry case is supplied with this version - this is the mains powered kit that comes with the mains power adaptor instead**
£735.00
Add to basket
Tiny FX Smoke Machine System
comprising Tiny FX Fogger, wired remote control, 250ml fluid tank and adaptor, 1 metre fluid pipe, 250ml fog fluid, battery cable to bare ends (no battery supplied).
**Note: NO battery, charger or carry case is supplied with this version - this is the mains powered kit that comes with the mains power adaptor instead**
£595.00
Add to basket


250ml Container Tiny Fog Fluid (fits into the foam case)

£11.00
Add to basket
2 Litre Container Tiny Fog Fluid
£42.00
Add to basket
Ducting adaptor for 15mm diameter hose
£28.00
15mm diameter Silicon hose (price per metre)
£10.00
Time-It Timer controller
£115.00

DMX-It DMX Interface

£118.00

Wireless remote control (transmitter and receiver)

£185.00
Y-splitter adaptor for silicon hose
£3.00
Spare battery for Tiny FX
£110.00
Spare battery charger for Tiny FX
£67.00
Spare Vaporiser for Tiny FX
in protective case with full fitting instructions
£34.00
Suitable smoke fluid



Related products:

The Pea Soup Micro Rocket is our best value battery powered unit.
Click on the image below to find out more:

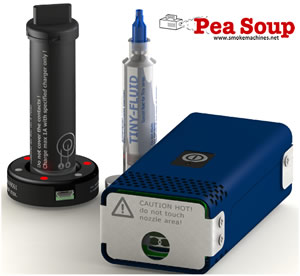

Tiny S Smoke Generator

This unit is virtually the same as the Tiny FX unit above, except for the following differences:

  • Battery can be screwed into the machine, making the whole system a one-piece unit.
  • Lower output - 30 watt heater instead of 75 watt.
  • Output can be adjusted to a low or high setting.
  • Dimensions are 10.3cm x 5.1cm x 3.4cm.
  • Weight 250g with battery and fluid.
  • Battery voltage is 3.7v. Two batteries are supplied with the system, each giving approx 10 mins smoke.
  • Fluid consumption is 0.5ml per minute due to reduced output, so a 5ml fluid tank gives 10 mins smoke production in total.
  • The wireless remote, DMX or timer controllers for the Tiny FX unit will NOT work with the Tiny S. There is a radio remote system available for the Tiny S unit only (see accessories below).

Package includes: Tiny S Fogger, 2 x 3.7v batteries, charger, wired remote control, 6 x 5ml fluid tanks, refill set, 250ml fog fluid, lead, carry case.


Each 5ml smoke fluid syringe (6 provided, plus refill kit) provides up to 4 minutes of smoke production
.

Please note on all Tiny Foggers, the vaporiser PCB is not a warrantied item. It is a wearing part and not covered by the warranty.

List price: £762.00
Our price: £660.00
(approx USD $870.00)



We ship worldwide
UK, EU or US plug supplied for charger

Tiny S System & Accessories
Tiny S Fogger System
Comprising fogger, 2 x 3.7v batteries, charger, wired remote control, 6 x 5ml fluid tanks, refill set, 250ml fog fluid, lead and carry case.
£660.00

Wireless remote control system
(transmitter and receiver) for Tiny S only.
100m range in ideal conditions.

£185.00
Ducting adaptor for 15mm diameter hose
£28.00
15mm diameter Silicon hose (price per metre)
£10.00
Y-splitter adaptor for silicon hose
£3.00
250ml Container Tiny Fog Fluid (fits into the foam case)
£11.00
Add to basket
2 Litre Container Tiny Fog Fluid
£42.00
Add to basket
Spare Vaporiser for Tiny S
in protective case with full fitting instructions
£34.00


Tiny CX Portable Smoke Machine

The TINY CX is a handy, compact battery-driven fog generator. Its easy handling and quick start-up is outstanding. It is essentially the Tiny FX (above) contained in one hand-held unit for easier handling and more convenient one-handed operation.

With its warming up time of less than a second, its light weight (630g) and small dimensions (L = 25 x W = 5.3 x H = 5.5 cm), this machine is applicable in many fields of operation.

For theatre, film, TV and photographers, musicals and special effects, air flow and air tightness testing – everywhere where fog is needed quickly and unobtrusively, the Tiny CX is the perfect alternative to normal mains powered fog machines.

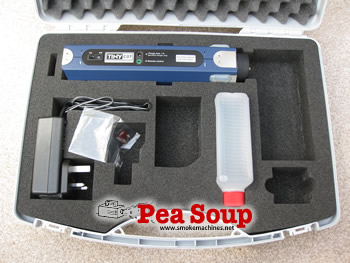

Kit comprises:
1 x fog machine
1 x battery
1 x recharger and lead
1 x bottle of fog fluid

All components of the machine have been built into a small and robust case.

The new version now has an interchangeable battery for quick swapping.

Just like the Tiny FX, the heart of this machine is a microprocessor which controls and supervises all important functions. This guarantees a continuous and safe running of the generator.

Because of an intelligent control mechanism the battery supplies energy only when necessary.

Operation

To put the Tiny CX into operation:
The fluid tank, which is fitted to the case, has to be filled with fluid.
The supplied 12V-battery has to be inserted into the case. It engages itself.
Now the machine is ready to use. It can be started immediately and continuously without any warming up time.

With one battery you can produce up to 12 minutes of continuous output or up to 150 puffs of 5 sec.
When the battery is flat, you can quickly change it for a spare (optional) and so continue operation.

The unit can easily be triggered with one hand. The start button is placed on the comfortable grip and can be pressed with the thumb.

A special fluid ensures that dense fog is produced with the lowest of fluid consumption.

The vaporiser can be easily changed by the user on site.

The unit can be controlled in the following ways:
With a DMX-converter the machine can be triggered via DMX 512. With a Timer you can program in the fog time and interval period.
It can also be triggered with a radio remote control.

• Small dimensions, light weight
• Battery supplies energy only when necessary
• Warm up time less than 1 second
• Continuous output
• Lowest fluid consumption
• Easy handling
• Triggered with the start button or the optional radio remote, DMX-converter and timer

Power requirement: 70 Watt
Voltage: 11.1 V battery
Warm up time: 0.5 sec.
Fluid tank capacity: 50 ml
Fluid consumption: 2.3 ml/min.
Continuous output with battery: 15 min

Control: start button / radio remote (optional) / DMX512 (optional) / Timer (optional)

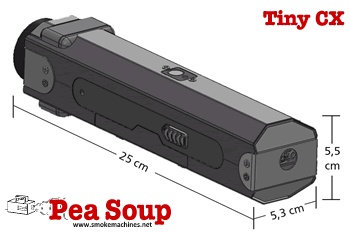

Dimensions (L x W x H) 25 x 5.3 x 5.5 cm
Weight incl. battery 630 g

Package includes: Tiny Compact (fog generator + battery pack), charger, 250ml fluid, carry case.


We ship worldwide
UK, EU or US plug supplied for charger

Please note on all Tiny Foggers, the vaporiser PCB is not a warrantied item. It is a wearing part and not covered by the warranty.

List price: £811.00
Our price: £695.00
(approx USD $915.00)


Tiny CX System & Accessories
Tiny CX Battery Powered Smoke Machine System
Comprising fog generator, battery, charger, 250ml fluid and carry case
£695.00
Add to basket
250ml Container Tiny Fog Fluid (fits into the foam case)
£11.00
Add to basket
2 Litre Container Tiny Fog Fluid
£42.00
Add to basket
Ducting adaptor for 15mm diameter hose
£28.00
15mm diameter Silicon hose (price per metre)
£10.00

Wireless remote control system (transmitter and receiver) for Tiny CX.

£185.00
Time-It Timer controller
£115.00

DMX-It DMX Interface

£118.00
Y-splitter adaptor for silicon hose
£3.00
Spare Battery pack for Tiny CX
£114.00
Spare battery charger for Tiny CX
£67.00
Spare Vaporiser for Tiny CX
in protective case with full fitting instructions
£34.00

Similar products:

The Pea Soup Micro Rocket is our best value battery powered smoke machine. Click below to find out more:


400W 12v DC Battery Powered Smoke Machine


Don't forget, if you need to produce LOTS of persistent smoke, our Rocket system can be used off-power for up to 2 minutes

This is a higher output battery powered smoke machine than those above.

Ideal for theatre, film, TV and photographers, musicals and special effects - everywhere where fog is needed quickly and efficiently, this unit is the perfect alternative to normal mains powered fog generators.

Very short 1 second heat-up time

Light weight (5.6 kg) and small dimensions (L=22.3, W=10, H=21 cm)

Adjustable smoke output

250 hours stand-by time

The battery supplies energy only when necessary, so the operation time is considerably increased - the stand-by time is 250 hours.

With one battery 10 minutes of continuous output or up to 150 x 5 second bursts can be produced. When the battery is flat it has to be recharged with the supplied charger.
As an option a spare battery pack is available (battery complete with housing, PCB, fuses and plug). The fog generator can easily be disconnected from the battery and connected to the new battery quickly. Alternatively, an external battery connector cable is available allowing you to connect a 12v car battery, giving up to 2 hours of smoke production in total!

Minimal fluid consumption - just 10ml per minute

The unit is equipped with a 3 pin-XLR-socket for analog (0 - 10V) control. An XLR-remote as well as a wireless radio remote can be connected (both optional extras).

With the optional DMX-converter (DMXit) the machine can be controlled via DMX 512.

With the optional Timer module a 'fog' and 'wait' time can be programmed in.


• Portable use
• Heat-up time only 1 second
• Light weight, small dimensions
• Adjustable output
• 250 hours stand-by time
• Continuous output
• Easy handling
• Control via start button or analog (0 - 12V) and with optional controllers: XLR-remote, radio remote, DMX-converter, Timer
• Minimal fluid consumption
• Easy change of the battery pack

Pack includes:
  • Fog generator
  • Battery pack
  • Battery charger
  • Fluid tank 250 ml

Power: 400 Watt
Voltage: 12 V with battery
Warm up time: 1 second
Fluid consumption at continuous output: 10 ml/min.
Fluid tank capacity: 250 ml
Fog output: adjustable
Fog time: with battery
10 min. continuous output or 150 x 5 sec. bursts
Control: Start button on hondle / 0 – 10 V analogue
OPTIONAL: Radio remote / DMX 512 / Timer

Temperature control: Microprocessor controlled
Dimensions (L x W x H): 22.3 x 10 x 21 cm
Weight incl. battery: 5.6 kg


We ship worldwide
UK, EU or US plug supplied for charger

List price: £761.00
Our price: £579.00
(approx USD $765.00,
EU €655.00
)


400W Battery Powered Smoke Machine System. £579.00.
Select any additional products you require, then click "Add to basket":
2.5 Litre Container Mini Rocket Smoke Fluid £36.00
5 Litre Container Mini Rocket Smoke Fluid £65.00
Wireless remote control £148.00
Cable remote control (provide your own 3-pin XLR lead) £38.00
Spare battery base assembly including battery £165.00



Accessories

PS19TPO: Fogger part without battery
Just the top 'smoke producing' part of the unit (no battery or charger). You will need your own battery to make this unit work (see our cable connector below for connecting to a 12V car battery). It comes with a length of fluid pipe and 250ml fluid reservoir.

£449.00
Stainless Steel Version
As per the standard system with battery and charger, but in a stainless steel chassis.
£675.00
PS311: Timer controller
Allows precise automated timed smoke output from the unit, digitally controlling the fog run time and delay interval with accuracy to the second.
£115.00

PS310: DMX Interface
Allows you to connect the unit to a DMX control source.

£110.00
PS412: Wireless remote control and receiver
100 metre range in ideal conditions. Controller can be user-set to be momentary or latching.
FCC Approved.
£148.00
PS410: Cable remote control (XLR cnnector)
Volume control and latching on/off switch. Supply your own standard XLR cable for whatever length you require.
£38.00
PS405: 500ml Container Smoke Fluid
Suitable for the Power Tiny or Mini Rocket.
£14.00
PS425: 2.5 Litre Container Smoke Fluid
Suitable for the Power Tiny or Mini Rocket.
£36.00
PS450: 5 Litre Container Smoke Fluid
Suitable for the Power Tiny or Mini Rocket.
£65.00
PS414: Spare battery base assembly including battery (no charger)
Gives you a back-up battery to use. 10 minutes continuous output from a full charge. Includes connector plug, built-in charging PCB and fuses.
£165.00
PS416: Cable connector for connection to a 12V car battery
Allows longer run-times from larger capacity batteries. A 70Ah car battery should give 2 hours total fog production.
£45.00
PS421: Mains Power Adaptor
To allow the operation of the unit direct from mains power, increasing the run-time as there is no battery involved. Stainless steel enclosure, fan cooled.
£475.00
PS413: Replacement battery charger
The charger required to charge-up the standard supplied battery for this unit.
£68.00
PS418: Ducting adaptor
For 32mm internal diameter hose (see below).
£26.00
PS419: 32mm diameter flexible ducting hose, 2 metre length
For use in conjunction with the ducting adaptor above.
£49.00
PS420: 32mm diameter flexible ducting hose, 4 metre length
As above, but 4 metre length.
£86.50
PS415: Spare vaporiser assembly including PCB
Simple replacement using existing connectors inside the unit.
£95.00
PS422: Flight Case
With custom foam cut-out. Space for the smoke unit, spare battery assembly, charger/remote, etc. Colour: black.

£210.00
PS417: Transport / Storage Case
With custom foam cut-out. Space for the smoke unit, charger/remote and 500ml fluid container. Colour: black.
£160.00

Spare Parts
for this unit are available - circuit board, fluid pump, fluid pipe, thermal fuses, etc.
Contact us



*US dollar / Euro conversions correct as on 13 Nov 2017.



Related products:
Name Description
Micro Rocket 12v DC Smoke Machine A small battery powered smoke generator for air flow, props, special effects, etc.
Mini Rocket 12v DC Smoke Machine A compact battery powered smoke generator for air flow, special effects, etc.
Hand Portable Smoke Machine The Rocket is the market leading compact portable smoke generator. Robust, powerful and reliable.
Mini Mist Turbo A compact and portable smoke machine.
Microfog A superb low cost aerosol smoke machine.
Home   |   Smoke Machines   |   Hire Smoke Machines   |   About Pea Soup   |   Contact us   |   View basket
Copyright 1997 - 2017 Pea Soup Ltd. UK | All rights reserved. E&OE. T&C.
Pea Soup smoke machines, fog generators, hazers and fluid.
