With an output that puts pyrotechnic smoke bombs
to shame, complete controllability and low running costs,
this gas powered
smoke
gun is the ideal solution for external
smoke
Designed
for:
film
makers
photographers
outdoor
training
Established
for over ten years, this
smoke
gun has become the industry standard exterior gas powered
smoke
gun. Small, lightweight and easy to operate, using disposable
aerosols of gas and
smoke
fluid and incorporating a piezo electric ignition. Its variable
output can be regulated from a trickle of light mist to a
dense fog. Supplied in a metal carrying case.
This smoke gun is a unique, off power
smoke
generator ideal for creating large volumes of
smoke
for applications such as fire training, public order training,
photography and film making - indeed any application where
complete portability is a requirement.
Using conventional Taymar type gas cartridges
as the heating source (available worldwide) and one of our
special smoke fluid canisters, the smoke gun is incredibly
straight forward to use. Simply screw in the canisters, pre-heat
the stainless steel coil for a few seconds, and turn on the
smoke
. It's that easy!
Principle of Operation
Smoke
oil stored in disposable, ozone friendly
smoke
canisters, is forced under pressure from an inert propellant
into a heat exchanger, where it is vaporised using heat applied
by a high efficiency burner. The burner draws gas from standard
propane/butane cartridges such as the Taymar 3500. The vapour
produced condenses on reaching normal atmosphere and a dense,
non-toxic white
smoke
is produced.
Features:
Completely portable -
no electricity required.
Very high, controllable
smoke
output
Convenient Piezo ignition
Non-toxic
smoke
Complete with metal carry case
Optional barrel shroud
Operation:
Power supply: aerosol gas canister
Warm up time from cold: 20 seconds
Maximum duration of
smoke
canister at full output: 6 - 3 minutes (full output) or
up to 16 minutes moderate output
Ratio of
smoke
canister/gas canister use: 3/1
Maximum
smoke
output: 17,650 cubic feet per minute
We
ship worldwide.
Mechanical
Specifications:
Height: 483mm (19in.)
Width: 140mm (5.5in.)
Length: 419mm (16.5in.)
Weight: 3kg (6.6lbs.) (9kg (19.8lbs.) with
metal carry case)
Exterior use only.
Editor's note:
Ideal smoke machine for exterior locations where elecricity
is not available. Popular with film crews on location.

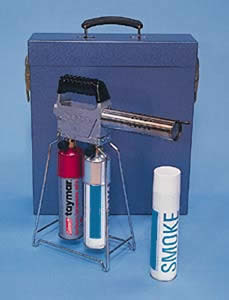

Smoke Gun System
Exterior
Smoke Gun System
comes complete with metal carry case.
POA
Replacement
heater coil
for exterior smoke gun above.
£150
Exterior Smoke Gun for
USA/Canada
- as above, but also comes with barrel
shroud and US gas cylinder thread adaptor and raisers.
POA
Without barrel shroud fitted
Smoke Oil Aerosols
Smoke Fluid & Accessories
Box of
10 x 400ml Smoke Fluid Aerosols for exterior smoke
gun above.
Our smoke fluid aerosols are made from one-piece aluminium so
they will not rust or leak.
£90.00
Box of
12 x Propane Gas Aerosols for exterior smoke gun above.
£87.00
We
cannot send the propane gas aerosols (above) anywhere outside
mainland UK - you must source them in your own
country if you are outside the UK. The thread type of these
propane cylinders is the same around the world, EXCEPT
in America/Canada where the thread type is different. They are
readily available from hardware stores and camping supply stores.
Overseas
Ordering of Smoke Fluid Aerosols
The box of 10 smoke fluid aerosols above are pre-pressurised,
which means they cost more to ship overseas than a normal container
of fluid as they are classed as 'hazardous'. To lower the cost
of shipping and further reduce running costs of your smoke machine,
we can supply a refillable canister option which we send empty of fluid and unpressurised. Instead of using
the pre-pressurised aerosols, re-fillable aerosol cans can simply
be pressurised to 80PSI by a hand pump, airline (e.g. in a garage
forecourt) or inert gas supply. You simply buy our refillable
canister and a 5 litre container of our smoke oil which will fill
the can around 14 times. It is possible to re-fill the same
can 25+ times. You can, of course, purchase any number of 5
litre containers at the time of your order.
Refillable
canister with siphon tube (supplied singly) Fill with fluid (below) and pressurise with
a hand pump, airline (e.g. in a garage forecourt) or inert gas
supply. Can be refilled 25+ times. Overseas shipping costs
are greatly reduced by ordering refillable canister(s) and containers
of smoke fluid instead of pre-pressurised canisters.
£45.00
5 litres Smoke Oil for
use with refillable canister (above)
Will fill the refillable aerosol approx. 14 times.
£44.00
High pressure shock pump - with
gauge, used to pressurise the refillable canister (above) to
80PSI (5.5 bar). Small and portable, requires approx. 200 activations
to pressurise canister. Photo below shows pump next to refillable canister.
£45.00
High
pressure stirrup pump - with gauge, used to pressurise
the refillable canister (above) to 80psi (5.5 bar). Physically
larger in size than the shock pump above, but only requires
around 5 actions to pressurise the canister.
Photo at left shows pump next to refillable
canister.
£45.00
High Pressure Foot Pump
- with gauge, used to pressurise
the refillable canister (above) to 80PSI (5.5 bar). Smaller than
stirrup pump above, but only requires around 20 actions to
pressurise the canister but using your leg instead of your arm. Photo at
left shows refillable canister next to pump.
Features:
We
ship worldwide.
Refillable
canister with siphon tube (supplied singly)
High
pressure stirrup pump - with gauge, used to pressurise
the refillable canister (above) to 80psi (5.5 bar). Physically
larger in size than the shock pump above, but only requires
around 5 actions to pressurise the canister.
High Pressure Foot Pump
