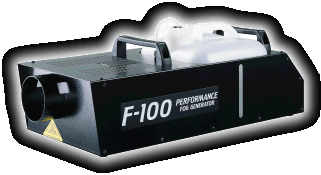

F-100 Performance Fog Generator


F100 Performance Fog Generator

High End's F100 Performance Fog Generator is designed to meet the rigorous demands of the nightclub, theatrical and touring industries. This rugged, dependable unit produces any atmosphere from desnse smoke to fine mist.

Quiet operation

Massive smoke output

Heavy-duty construction

Full 2 year warranty

The pump in the F100 is acoustically isolated from the chassis, resulting in low noise levels and making it ideal for theatrical and sutdio work. High End Systems Atmospheres smoke generating fluid is specially formulated to provide a dense, safe, water-based smoke of a fine particulate size.
Available with either the timer remote controller, which accepts 0-10V analog proporional signals, or as a DMX-512 version. At its highest output setting, the unit will put out 15 second long blasts of smoke . It can also be adjusted to run continuously, to cover any atmospheric requirement, making it ideal for use with smoke chiller units to create heavy fog, such as in the London Dungeon, or to generate a continuous stream of smoke for theme park rides such as Oblivion at Alton Towers. The F-100 is a favourite in America among film units, theatres and concert events. Its operating temperature is around two thirds of that of other water based smoke machines due to high efficiency heat transfer.


  • Large 9.5 litre (2.5 gallon) removable fluid reservoir for extended use
  • Available with either the timer remote control or the DMX version
  • Atmospheres™ scientifically formulated fluid provides optimum particulate size for lighting applications
  • LED status indicators
  • Fluid level sight gauge
  • User replaceable fluid filter
  • Thermocouple over-temperature protection


  • Low maintenance corrosion-resistant vaporizing chamber
  • Dual carrying handles
  • 100mm (4in.) integral output collar for optional distribution ducting
  • 3-pin XLR connector


  • DMX or timer remote control
  • Power consumption: 120V - 240V, 50/60Hz
  • Parallel inverted SCR electronic switching

Mechanical Specifications:

  • Height: 209mm (8.25in.)
  • Width: 298mm (11.75in.)
  • Length: 686mm (27in.)
  • Weight: 14kg (31lbs.)

Full 2 year warranty

Supplied complete with either a timer remote control or DMX remote control at no extra cost
(normal cost £200 and £265 respectively).

Download user manual

Sorry, this unit is discontinued.

The F-100 has been replaced by the FQ-100.
Contact us to talk about your application.

F-100 Atmospheres™ Fluid Equiv

£42.00 per 9.5 litres.
(Please note, up to 3 week lead time)

Add to basket

Related products:
Name Description
2.2kW High Output Smoke Machine The Dragon is our highest quality water-based smoke generator offering continuous 100% high output and uncompromising component reliability.
Oil Based Smoke Generators The ultimate choice for larger applications whose super dense smoke has a very high temperature tolerance and persistence.
