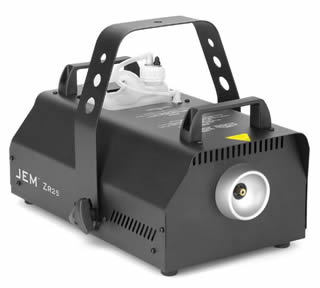

Jem ZR25 Smoke Machine



If you liked the Jem ZR12, its replacement the Martin Magnum 1800, then the ZR25 is the latest model of this variant.
The ZR25 is a fog generator designed for use in entertainment applications, ie theatres, nightclubs, etc.

The JEM ZR25 is a small, yet powerful fog machine designed to deliver and uninterrupted performance in demanding applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages. The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with an integrated digital remote control, and DMX with RDM.
The unit is compatible with a wide range of JEM Pro fog fluids.

  • Small but powerful fog machine
  • Exceptional performance and output for its size
  • Simple plug-and-play operation via remote control or DMX

Features:

  • 1,150 W heat exchanger
  • Fluid consumption (max.): 100 ml per minute
  • Maximum operating time, maximum output, 2.5L of fluid: 1.2 hours
  • Variable output control for subtle effects
  • 7 minute warm-up time
  • Digital remote control included

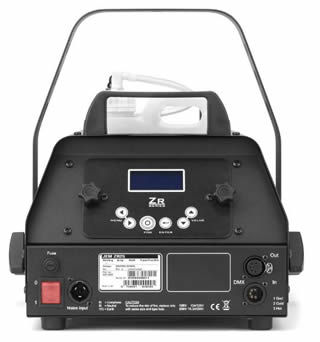

  • DMX and RDM on-board
  • Compatible with a wide range of JEM Pro fog fluids
  • Floor standing or truss mounting (bracket included)
  • PowerCON TRUE1 power connector

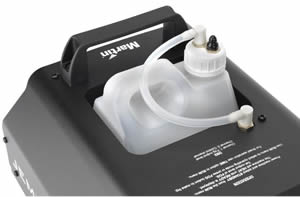

  • 2.5 litre fluid tank

Mechanical Specifications:

Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)

AC power: 220-240 V nominal, 50 Hz
optional: 110-120 V nominal, 60 Hz

Fluid capacity:
2.5 litre

Fluid consumption (max. initial blast before ramping down):
100ml/minute


Jem ZR25 Smoke Machine
For 240v power, with remote control

Accessories
Ducting system for ZR25 with ducting adaptor and 5 metre long (16.4 ft.) 100mm (4") flexible ducting hose
Jem Fog Fluid for this machine
