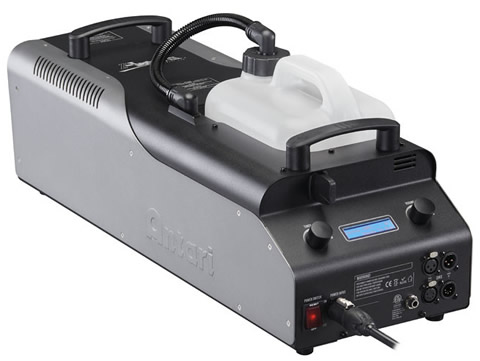

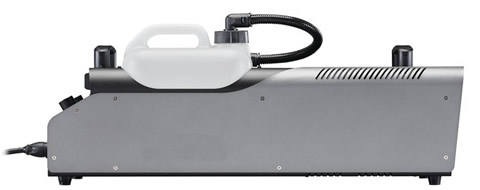

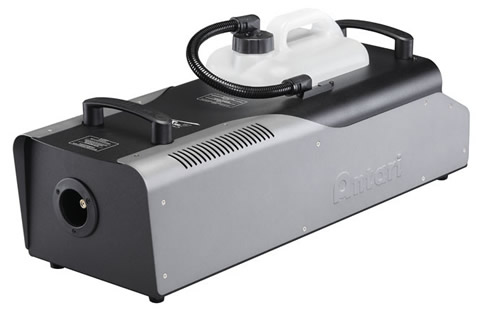

Smoke Machine

  • 1,390 watt heater

  • DMX control interface

  • Digital Timer remote control

  • Precise variable output from 1 - 100%

  • 6 litre fluid tank

  • Optional wireless remote

  • Choice of special effect smoke fluids from quick dispersing to long lasting

A 1390 watt smoke machine that offers stability, durability, and reliability. When it comes to ultimate performance and precision control the excellent value 1390W smoke machine will suit virtually any application. These foggers provide significant advantages in a wide array of applications where volume of fog output is critical. The heater block is made of nickel-aluminium alloy adopted for fast and efficient heat transfer. They are fully controllable via a state of the art LCD controller supplied allowing the operator to set the volume control and timing precisely to the exact percentage from 1% to 100% output. DMX connection can be worked by either 3 or 5 pin connector.

Ideal for large venues, outdoor events (although not weatherproof), movie productions or for fire training.

- Power: 230V
- Heater: 1,390W
- Output: 700m3/min. (20,000 cu.ft/min.)
- First Heat-Up Time: 8.5 min.
- Tank Capacity: 6 Litres
- Fluid Consumption Rate: 9 min/Litre (100% Output)
- Remote Included: Z-20 (LCD Timer Remote)
- Optional Remote: Z-30 (LCD Wireless Remote)
- Weight: 14 Kg
- Dimensions (cm): L68.8 x W28.5 x H18.8 cm

Remote supplied:
- Cable Length: 25 ft.
- Connector: 5 Pin XLR
- Function: Timer with interval, duration and volume; set DMX address; functions are displayed on a LCD screen and can be set precisely in seconds or %).
1 - 200 second variable on/delay time.
Continuous output at approx. 30% (34ml per minute).

Printable Info Sheet PDF



A higher output power 2.5kW Version of the machine above is also available!
Click on the picture above for more info.
