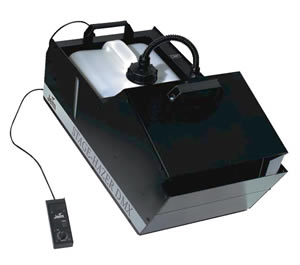

A sealed expansion chamber permits perfect internal effect mixing without the risk of residue damage to other components. A rear mounted fan draws air into the expansion chamber keeping the fan residue free and a wide bore vaporizing system reduces the risk of blockage. A Direct Thermal Protection device provides overheat protection and thus greater reliability.
With a fluid capacity of 9.5 litres, the Stage Haze 2 provides many hours of smooth consistent effect without requiring attention. Its rugged construction and compact design make the Stage Haze ideal for the professional touring sector as well.

Features:

• 2 x 600w heater
• 7 minute heat up time
• Low fluid shut off
• Sealed air chamber
• Approx. 400m3 Haze output per/min
• Rear mounted fans
• Analogue Remote Control
• Single channel DMX operation
• 9.5 litre fluid container
• Continuous haze output

DIRECT THERMAL PROTECTION DEVICE (DTPD)
This small yet crucial component is the last line of defence against catastrophic failure. This machine's DTPD is made from a solid ceramic composite. This guarantees extremely precise overheat monitoring and is unaffected by ambient temperature changes.

Electronic Pump Ramping (EPR)
EPR is an intelligent means of warning of a drop in temperature which could result in 'wet smoke' (residue). The pumps respond to this signal by running slower and pumping less fluid, thus allowing the heaters to restore optimum operational temperature. This guarantees a continuous flow of smoke using highly efficient, lower wattage heaters.

Electronic Low Fluid Cut-off System
This technology is fitted to all machines designed for continuous operation. To eliminate the risk of running dry and burning out the pump, this unique electronic sensing system will automatically shut-off the machine, protecting all major components.

Sequential Pump System
Because haze generators generally run continuously, heavy demands are placed on the pump. Jem's Sequential Pump System increases the life of the machine through a dedicated 'haze' pump circuit which pulses the pump at full output thus producing the ideal output and keeping the pump cool.

On-Board DMX
With onboard DMX you will have access to the machine from any DMX controller or desk.

Fluid Container (9.5 litre)
All Jem smoke, haze and heavy fog machines are designed to carry removable fluid containers of varying sizes depending on the model´s application. The removable container makes for quicker refills and protects the machine from damage through spillage in transit.

Heat Exchangers (2 x 600W)
All Jem heat exchangers are designed for high efficiency performance. Only the purest grade LM24 aluminium is used in the production process which eliminates the risk of porosity (pockets of gas within the casting which can cause heater failure). All heat exchangers contain cuprous helicoils of at least 2.8 metres in length, ensuring a continuous flow of pure, dry, white smoke.

Download user manual
in Adobe Acrobat format
