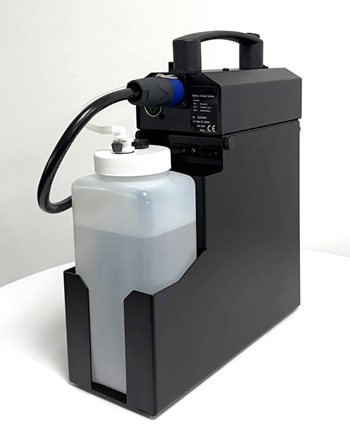

Ideal for theatre, film, TV,
photographers and special effects, smaller scale
air flow and air tightness testing and training in locations
without power - everywhere where fog is needed quickly and
efficiently, the Mini Rocket is the perfect
alternative to normal mains powered fog generators.
10 minutes smoke production per charge
Portable use, easy handling
Heat-up time only 1 second
Light weight, small dimensions
Adjustable output volume
Continuous smoke output
Control via button on handle or optional controls: wired remote, wireless remote, DMX-interface,
digital timer
Minimal fluid consumption
Easy swap battery pack
External battery connection possible for longer run times
FEATURES
• Very short 1 second heat-up time
• Weighs only 5.6 kg - small dimensions 22cm
long x 10cm wide and 21cm tall with battery
• Adjustable fog output
• Microprocessor controlled - guarantees
continuous and safe running.
• 10 minutes smoke production
With the supplied battery, 10 minutes of continuous output
or up to 150 x 5 second bursts can be produced. When the battery
is flat it needs to be recharged with the supplied charger.
Additional battery packs are available (battery complete with
housing, PCB, fuses and plug) for quick swapping and continued
fog production. Alternatively, an external battery connector
cable is available allowing you to connect a 12v car or leisure battery,
giving up to 2 hours of smoke production in total.
The battery supplies energy only when needed, so operation
time is considerably increased - the stand-by time is 250
hours.
• Minimal fluid consumption - only
10ml per minute (at full output)
• Control
The unit is equipped with a 3 pin XLR socket for analogue (0
- 10V) control. An XLR-remote as well as a wireless radio
remote can be connected (both optional extras).
The optional DMX interface allows the machine to be controlled
via DMX 512. With the optional digital timer controller, a fog 'on' and 'off' time
can be set.
Specifications:
Power: 400 Watt
Voltage: 12V with battery
Warm up time: 1 second
Fluid consumption at continuous full output: 10 ml/min.
Fluid tank capacity: 250 ml
Fog output: adjustable
Fog time: per battery 10 min. continuous output or 150 x 5
sec. bursts
Control: Start button / 0 – 10 V analogue wired remote / OPTIONAL:
Radio remote / DMX 512 / Timer
Temperature control: Microprocessor controlled
Dimensions (L x W x H): 22.3 x 10 x 21 cm
Weight inc. battery: 5.6 kg
The supplied system comprises:
Fog generator
Battery pack in base assembly
Mains charger (100v - 240v AC, with UK, EU or
US plug)
Fluid tank 250ml
500ml container of Mini Rocket Smoke Fluid
Ships worldwide
all for only £640.00 (List
price £808.00) (approx.
USD ~$815, EURO ~€745)
Mini Rocket Accessories
PS19TPO: Mini
Rocket without battery
Just the top 'smoke machine' part of the unit supplied without a battery
or charger. You will therefore need your own battery to make the unit
work (see our cable connector below for connecting to a 12V
car battery). It comes with a length of silicon fluid pipe,
and a 250ml fluid reservoir. Height: 11cm
£540.00
PS19SS: Stainless Steel Mini Rocket
As per the standard system with battery and charger, but in a stainless steel chassis. Ideal for clean room air flow applications.
PS311: Timer controller
Allows precise automated timed smoke output from the unit, digitally
controlling the fog run time and delay interval with accuracy
to the second.
£135.00
PS310: DMX
Interface
Allows connection of the unit to a DMX control source.
£135.00
PS412: Wireless
remote control and receiver
Up to 100 metre range in ideal conditions. Selectable latching or momentary functions.
US customers: this item is FCC approved.
£195.00
PS410: Wired
remote control
Output volume control and latching on/off switch. With 6
metre long XLR cable provided (can be exchanged for longer if required).
£90.00
PS405: 500ml Container Mini Rocket Smoke
Fluid
For the Mini Rocket.
£25.00
PS425: 2.5 Litre Container Mini Rocket
Smoke Fluid
For the Mini Rocket.
£49.50
PS450: 5 Litre Container Mini Rocket Smoke
Fluid
For the Mini Rocket.
£85.00
PS414: Spare battery base assembly including
Panasonic battery
Quick and easy swap out. 10 minutes continuous output
from a full charge. Includes connector plug, built-in charging
PCB and fuses (no charger).
£215.00
PS421: Mains
Power Adaptor
To allow the operation of the unit directly from mains power,
increasing the run-time as there is no battery involved. Stainless
steel enclosure, fan cooled.
£495.00
PS416: Cable connector for connection to a 12V
car battery
Allows longer run-times from larger capacity batteries. e.g. a 12v 70Ah
car battery should give around 1 hour of total fog production.
£65.00
PS413: Replacement battery charger
A high quality charger to recharge the standard supplied battery
for this unit.
PS419: 32mm diameter ducting hose,
2 metre length
Flexible neoprene. For use in conjunction with the ducting adaptor above.
£76.00
PS420: 32mm diameter flexible ducting hose,
4 metre length
As above, but 4 metre length.
£130.00
PS415: Spare vaporiser assembly including PCB
Simple replacement using existing connectors inside the unit. No soldering required.
£95.00
PS423: Thermal fuse for vaporiser PCB
Replace the thermal fuse in the heater coil if it has tripped. Please note: Requires soldering.
£5.50
PS431: Replacement 12v Battery
Just the battery. 10 minutes continuous output
from a full charge. Does NOT include connector plug, cable, charging
PCB, fuses or base cradle assembly. Requires soldering if replacing an existing battery in an existing cradle. If you need an easy-to-swap battery with the cradle etc, you need item PS414 above.
£105.00
PS417: Transport / Storage
Case
With custom die cut foam insert. Space for the Mini Rocket unit,
charger/remote and 500ml fluid container. Colour: black.
IP67 certified for military, broadcast, marine, photography,
industrial use. Air tight, corrosion proof, water tight, sand
and dust proof. Built-in pressure valve. Can be padlocked.
Photo for illustration.
£245.00
Spare Parts
for this unit are available - main circuit board, fluid pump, fluid pipe, etc. Contact us
The Pea Soup Micro
Rocket Smoke Machine was designed by Pea Soup for
air flow tracing, LEV (local exhaust ventilation) tests, small scale leak detection
work and also to simulate smouldering fires for training.
It's also perfect for theatrical and cinematic special effect applications. The Micro Rocket produces a quick dispersing smoke.
Portable use, easy handling
Compact size
Heat-up time only 1 second
Light weight, small dimensions
Continuous smoke output
Minimal fluid consumption
Easy swap battery pack
Battery life of up to 20 minutes of continuous use at low output
Optional mains power adaptor for longer run times
High or low smoke output volume
Momentary (burst)
or continuous fog production
Optional wireless remote control
Optional wired timer remote control
Useable at wide range of angles
Comes with lockable carry case
Click on the logo below for full info, videos, spec:
Need more smoke output? Very persistent smoke?
If you need to produce large volumes of persistent smoke,
our Rocket smoke system can be used off-power for up to 2 minutes after an initial heat-up period on mains power.
Hand portable, comfortable to hold
Off-power capable
Continuous output (on mains power)
Variable output (0 -> maximum)
Non-toxic, thick, dry, white smoke - leaves no residue
The most persistent smoke produced by any water-based smoke machine on the market
Stainless steel version available
Utilises aerosol canisters for safe, convenient operation
Available with or without remote control
US/Euro currency conversions are approximate, and correct as at 15 Jan 2024.
